Ultra-High Molecular Weight Polyethylene (UHMWPE) rods are engineering plastic products known for their exceptional strength, durability, and low friction properties. Here's a breakdown of their characteristics and common applications:
Material Composition
UHMWPE rods are made from a type of polyethylene with an extremely high molecular weight. This gives them unique mechanical properties that set them apart from other thermoplastics.
High Strength
Despite being lightweight, UHMWPE rods have remarkable tensile strength, making them suitable for applications where structural integrity is crucial. They are much stronger than traditional HDPE (High-Density Polyethylene) or other plastics.
Abrasion Resistance
UHMWPE rods exhibit excellent resistance to abrasion, which makes them ideal for use in applications where wear and friction are concerns. They can withstand repeated impacts and sliding contact without experiencing significant deterioration.
Low Coefficient of Friction
One of the most notable properties of UHMWPE rods is their low coefficient of friction, which is even lower than that of PTFE (Teflon). This property makes them suitable for applications where low friction and smooth operation are essential, such as conveyor systems, bearings, and sliding components.
Chemical Resistance
UHMWPE rods are highly resistant to chemicals, including acids, bases, solvents, and oils. This chemical resistance makes them suitable for use in a wide range of industrial applications where exposure to harsh chemicals is a concern.
Non-Toxic and FDA-Compliant
UHMWPE is non-toxic and approved by the FDA (Food and Drug Administration) for use in food processing and medical applications. This makes UHMWPE rods suitable for applications where contact with food or biological substances is expected.
Electrical Insulation
UHMWPE rods exhibit excellent electrical insulation properties, making them suitable for use in electrical and electronic applications where insulation and dielectric strength are important.
Temperature Resistance
UHMWPE rods have a relatively high melting point compared to other plastics, typically around 130-140°C (266-284°F). They can also withstand low temperatures without becoming brittle, making them suitable for use in both hot and cold environments.

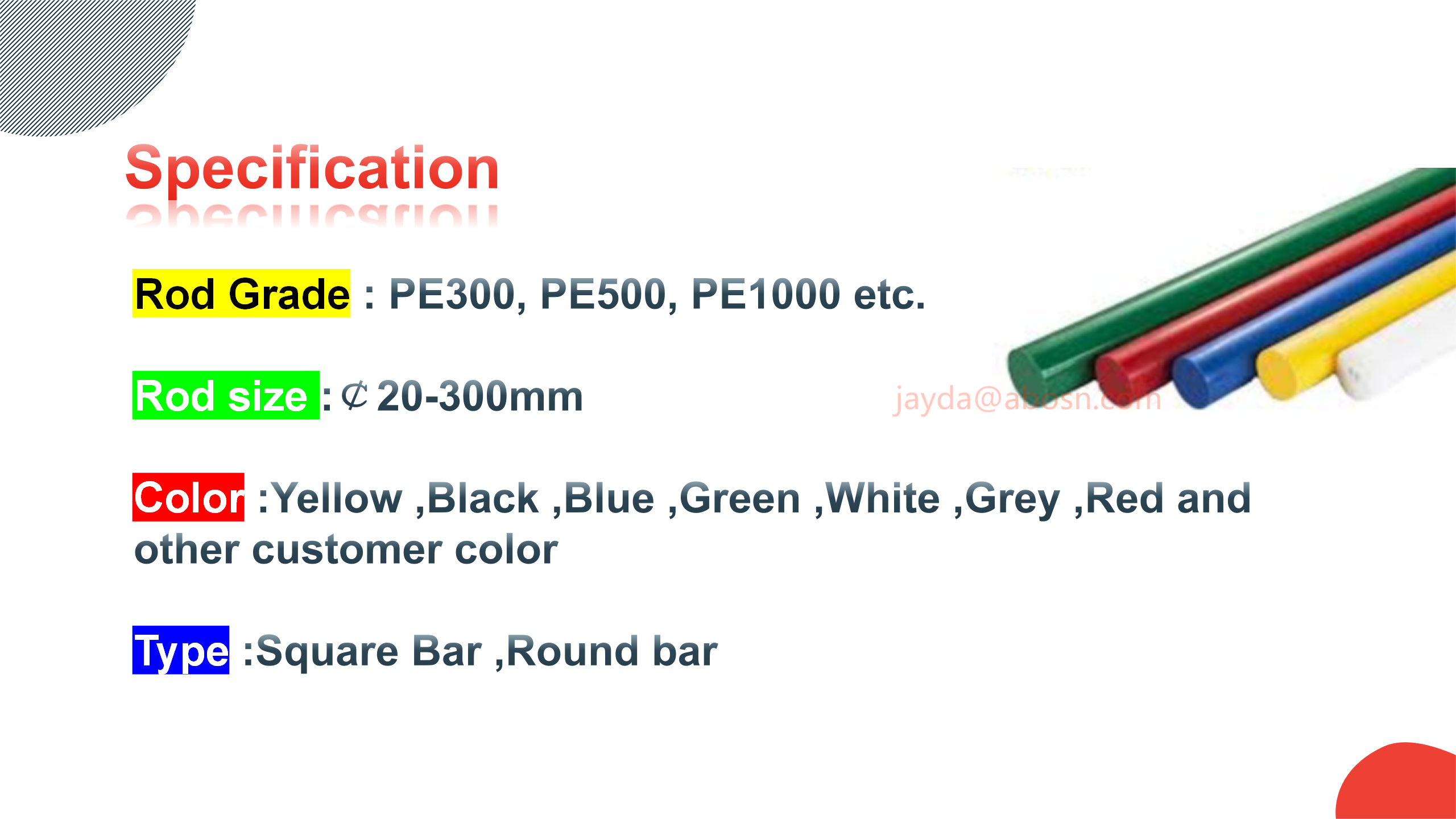

Specification
Rod Grade : PE300, PE500, PE1000 etc.
Rod size :￠20-300mm
Color :Yellow ,Black ,Blue ,Green ,White ,Grey ,Red and other customer color
Type :Square Bar ,Round bar
