Rod Grade : PE300,PE500,PE1000
Rod size :￠20-300mm
Color :Yellow ,Black ,Blue ,Green ,White ,Grey ,Red and other customer color

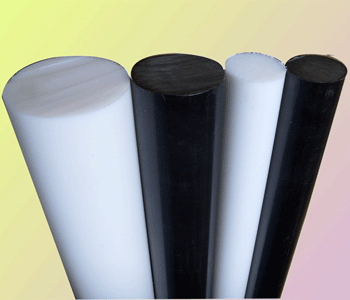

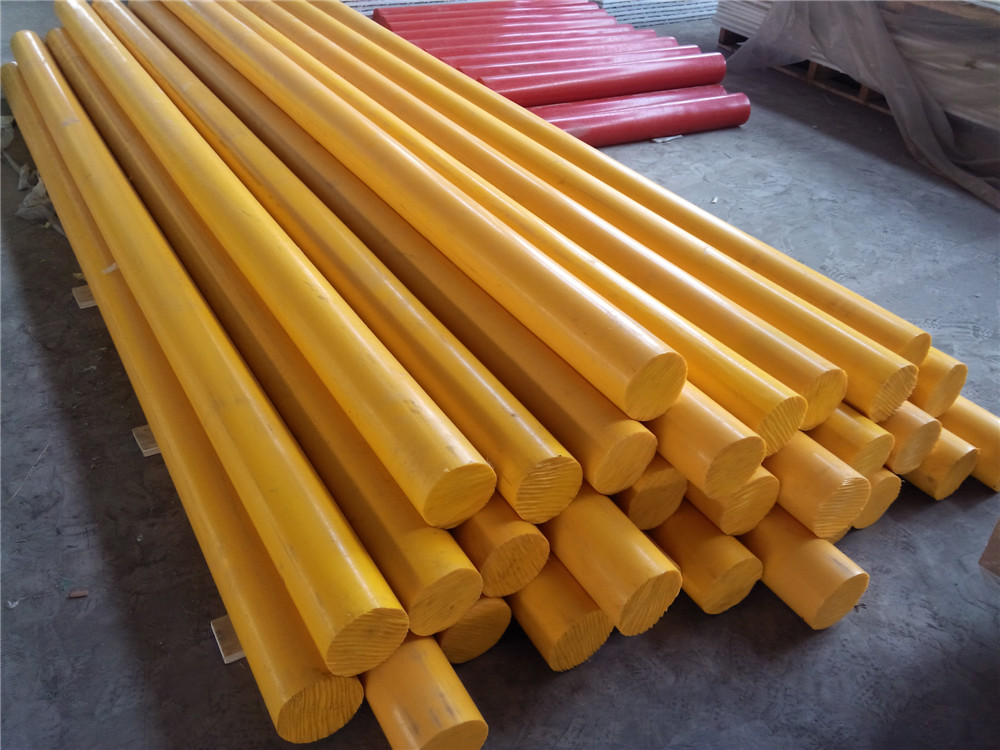

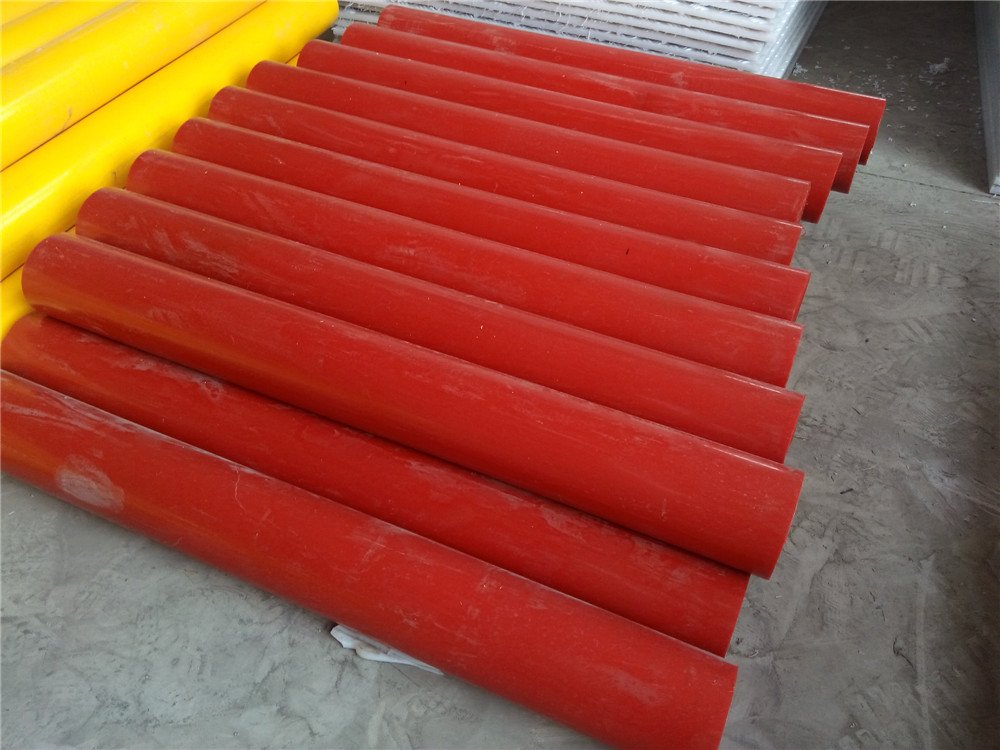

Type :Square Bar ,Round bar
Abosn own the world most advanced UHMWPE rod extruted machine .All color and size can be made according to customer requirements
Rod properties :
| Item | Test method | Test result | unit |
| Specific weight | ASTM D-792 | 0.96 | g/cm3 |
| Yield strength | 25 | MPa | |
| Ultimate strength | ASTM D-638 | 45 | MPa |
| Breaking Elongation | ISO527 | 355 | % |
| Impact strength | ISO179 | 130 | Mj/mm2 |
| Abrasion | ISO15527 | 83 | Steel=100 |
| Shore Hardness | ISO868 | 65 | Shore D |
| Friction Coefficient | ASTM D-1894 | 0.11 | Unitless |
| Coefficient of thermal expansion | ASTM D-696 | 0.0002 | ℃ |
| Volume resistifity | IEC600093 | ≤1000 | ∩*cm |
| Surface resistifity | IEC600093 | ≤1000 | ∩ |
| Water Absorption | ASTM D-570 | 0.0094 | % |
| Melt point | ASTM D-3417 | 138 | ℃ |
