SPARE PARTS FOR PAPER MACHINE
H.S. CODE: 8439.90.00

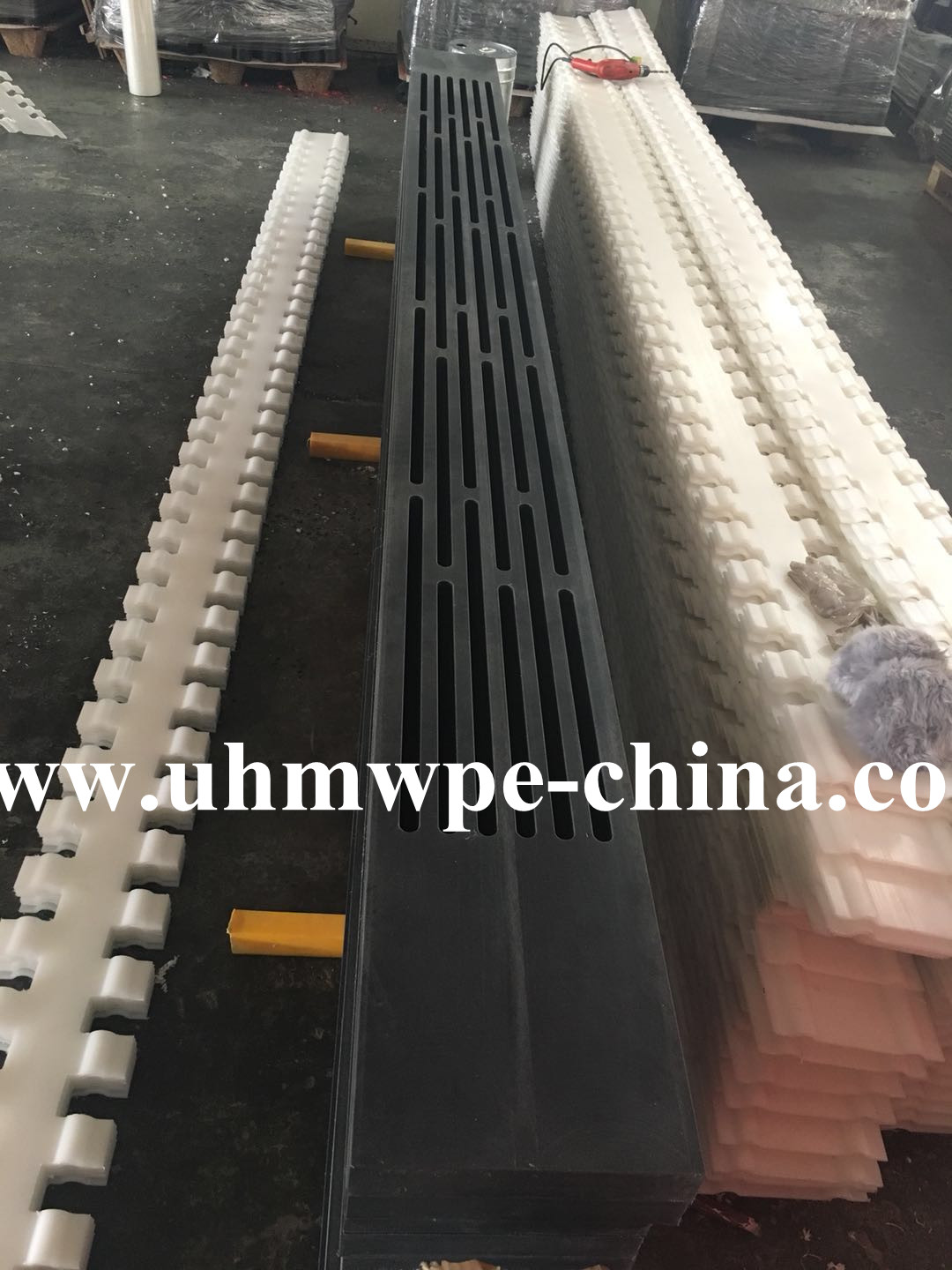

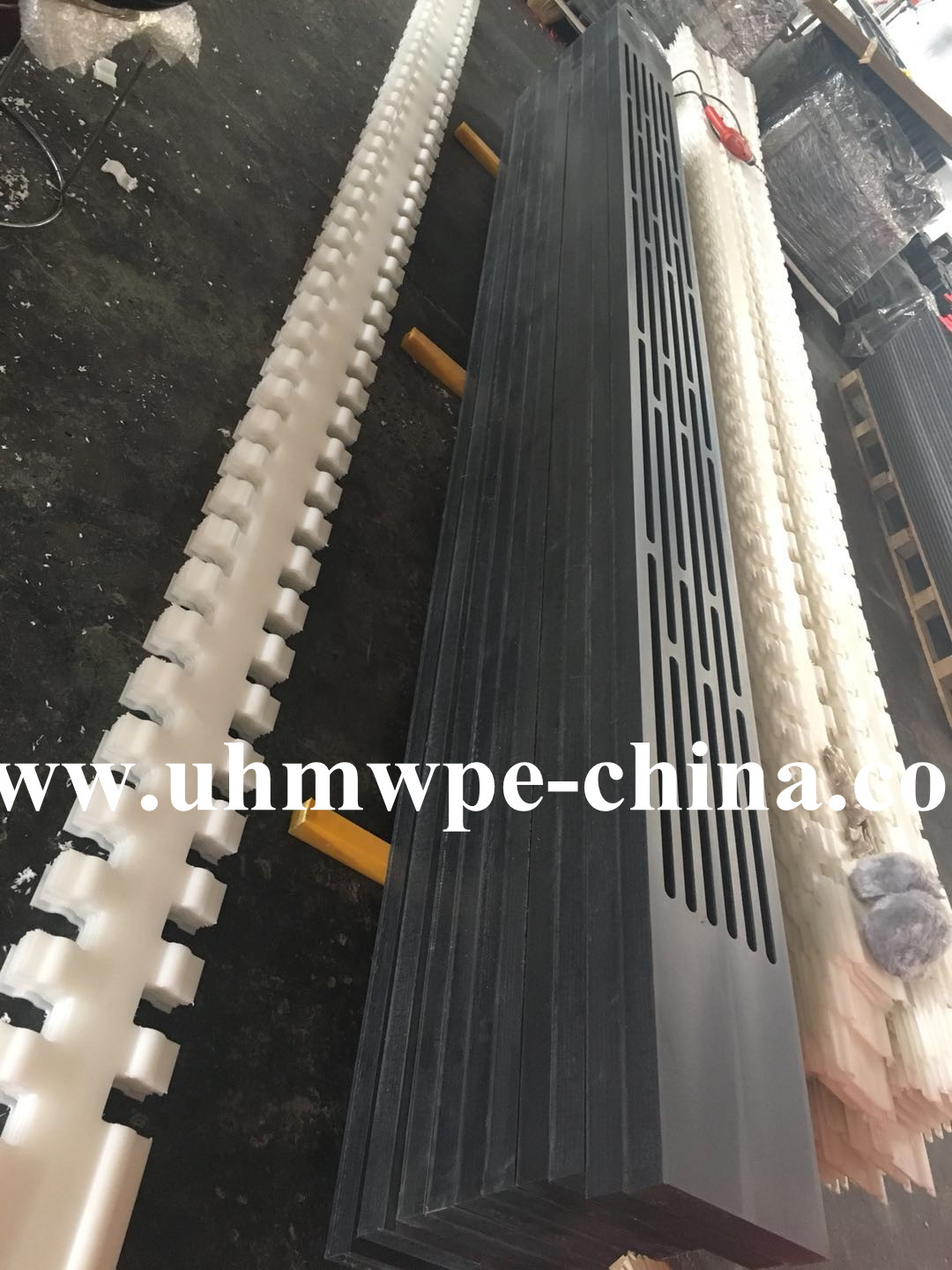

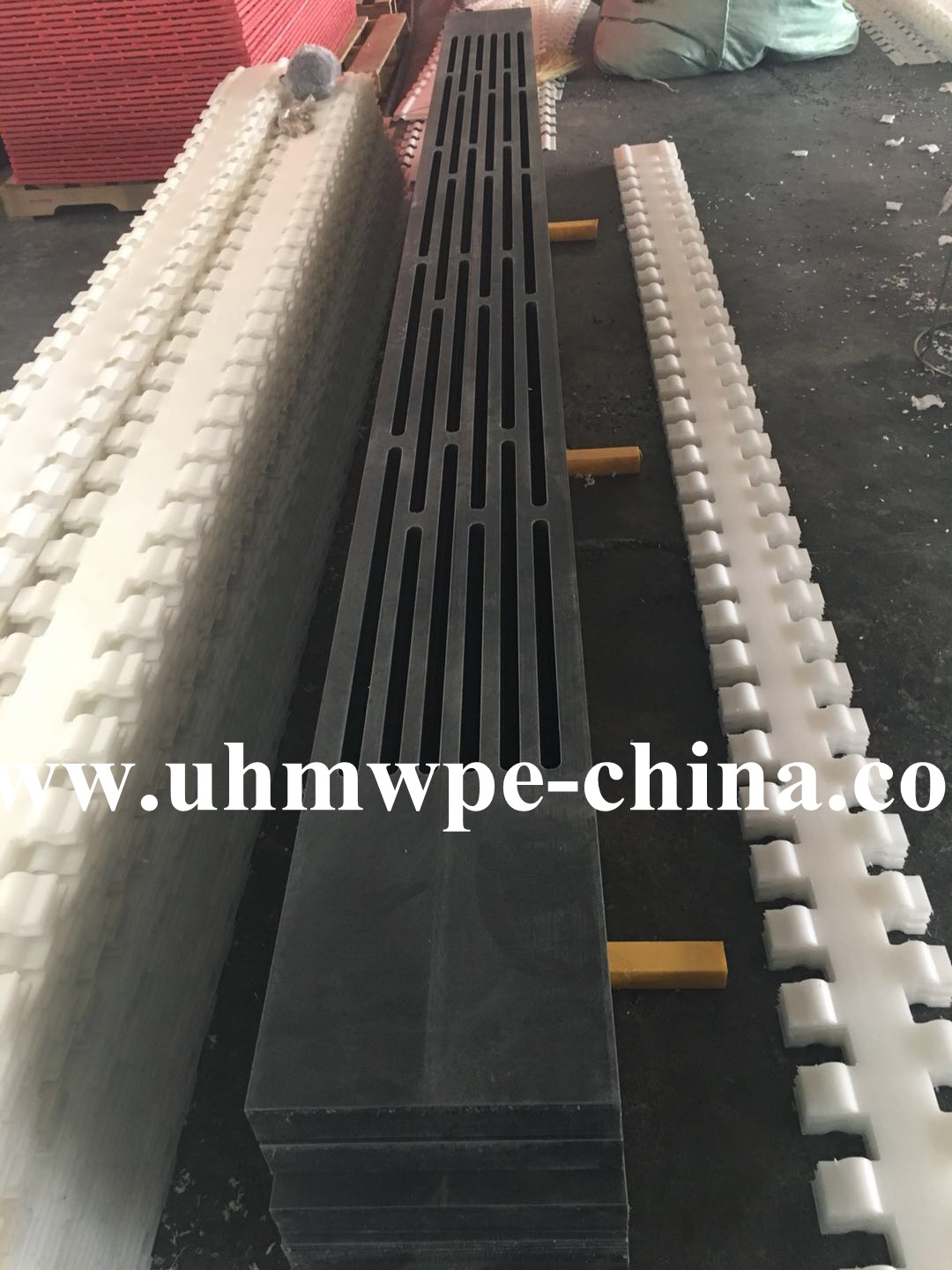

Smooth Surface Black Suction Box Cover
MATERIAL: CERAMIC WITH UHMWPE, 5.0 MILLION VOLUME WITH STRONG HARDNESS AND QUALITY.
COLOR: BLACK
SIZE (L X W X T): 3700 MM X 280 MM X 50 MM
WORKING AREA: 3045 MM X 220 MM
CUTTING DESIGN: AS PER BUYER’S DESIGN
At machine speeds of up to approx. 800 m/min. Depending on the position even at higher speeds.
UHMWPE dewatering elements have a high level of thermal expansion. They must therefore be installed in such a way that enables the strips or covers to expand without restriction (T-bars, corner strips, dovetail guides, screws in elongated holes). The base frame support must have a grid of approx. 250 mm to ensure flawless functionality for our covers. This support must extend to the underside of the cover to ensure it has a flat installation surface.
Any inquiry, please do not hesitate to contact us wendy@abosn.com
