Crane outrigger pads are large, flat, and sturdy platforms placed under the outriggers of cranes to distribute the weight of the crane and its load evenly. They prevent the outriggers from sinking into soft ground or damaging hard surfaces like concrete. Typically made of high-density plastic or composite materials, outrigger pads come in various shapes and sizes to suit different crane models and ground conditions. They play a crucial role in providing stability and safety during crane operations, especially on uneven or unstable terrain.
Size and loading capacity:

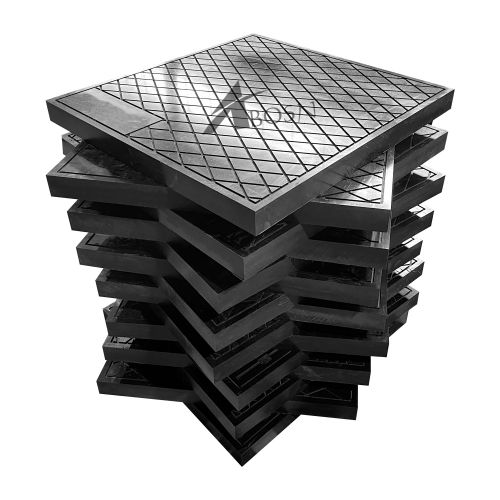

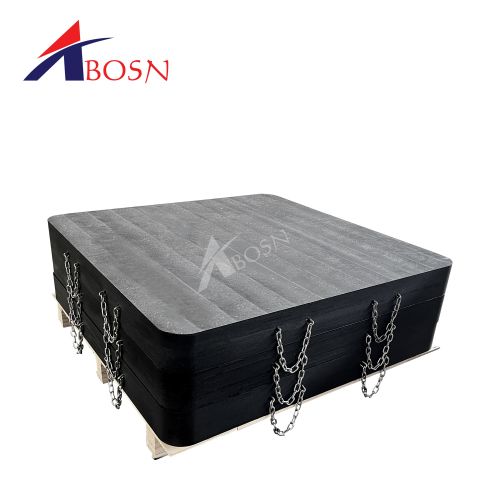

Square | |||
Part Number | Dimensions (mm) | Load Capacity (Tonnes) | Weight (kgs) |
AB40404 | 400x400x40 | 12.00 | 6.30 |
AB50504 | 500x500x40 | 15.00 | 10.50 |
AB50505 | 500x500x50 | 18.00 | 12.50 |
AB50506 | 500x500x60 | 25.00 | 10.00 |
AB60604 | 600x600x40 | 20.00 | 14.50 |
AB60605 | 600x600x50 | 25.00 | 17.00 |
AB60606 | 600x600x60 | 30.00 | 22.00 |
AB80804 | 800x800x40 | 35.00 | 25.00 |
AB80805 | 800x800x50 | 40.00 | 31.50 |
AB80806 | 800x800x60 | 45.00 | 39.00 |
AB1001004 | 1000x1000x40 | 40.00 | 38.40 |
AB1001005 | 1000x1000x50 | 50.00 | 48.00 |
AB1001006 | 1000x1000x60 | 70.00 | 58.00 |
AB1001008 | 1000x1000x80 | 100.00 | 77.00 |
AB1201204 | 1200x1200x40 | 68.00 | 55.50 |
AB1201206 | 1200x1200x60 | 110.00 | 80.00 |
AB1201208 | 1200x1200x80 | 120.00 | 118.00 |
AB12012010 | 1200x1200x100 | 160.00 | 146.00 |
AB200100100 | 2000x1000x100 | 220.00 | 200.00 |
AB15015010 | 1500x1500x100 | 200.00 | 224.00 |
AB18018010 | 1800x1800x100 | 240.00 | 319.00 |
AB30020010 | 3000x2000x100 | 300.00 | 584.00 |

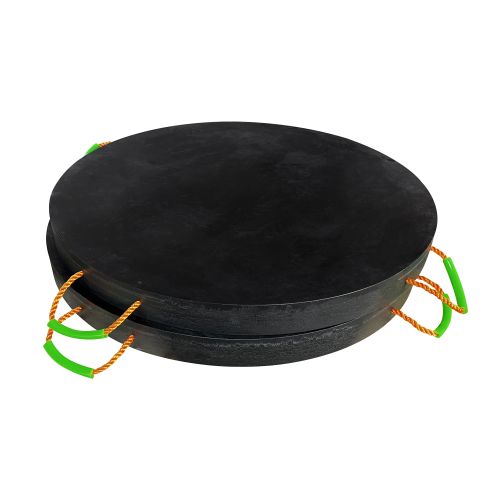

Round | |||
AB655 | 650x50 | 25.00 | 16.50 |
AB805 | 800x50 | 35.00 | 25.00 |
AB806 | 800x60 | 40.00 | 28.50 |
AB904 | 900x40 | 30.00 | 23.00 |
AB905 | 900x50 | 45.00 | 30.00 |
AB906 | 900x60 | 50.00 | 36.50 |
AB1004 | 1000x40 | 35.00 | 28.00 |
AB1005 | 1000x50 | 50.00 | 37.50 |
AB1006 | 1000x60 | 60.00 | 44.50 |
AB1007 | 1000x70 | 75.00 | 52.00 |
AB1008 | 1000x80 | 80.00 | 60.00 |
AB1206 | 1200x60 | 90.00 | 64.00 |
AB1207 | 1200x70 | 110.00 | 76.00 |
AB1208 | 1200x80 | 120.00 | 87.00 |
AB1508 | 1500x80 | 160.00 | 140.00 |
AB15010 | 1500x100 | 180.00 | 174.00 |
