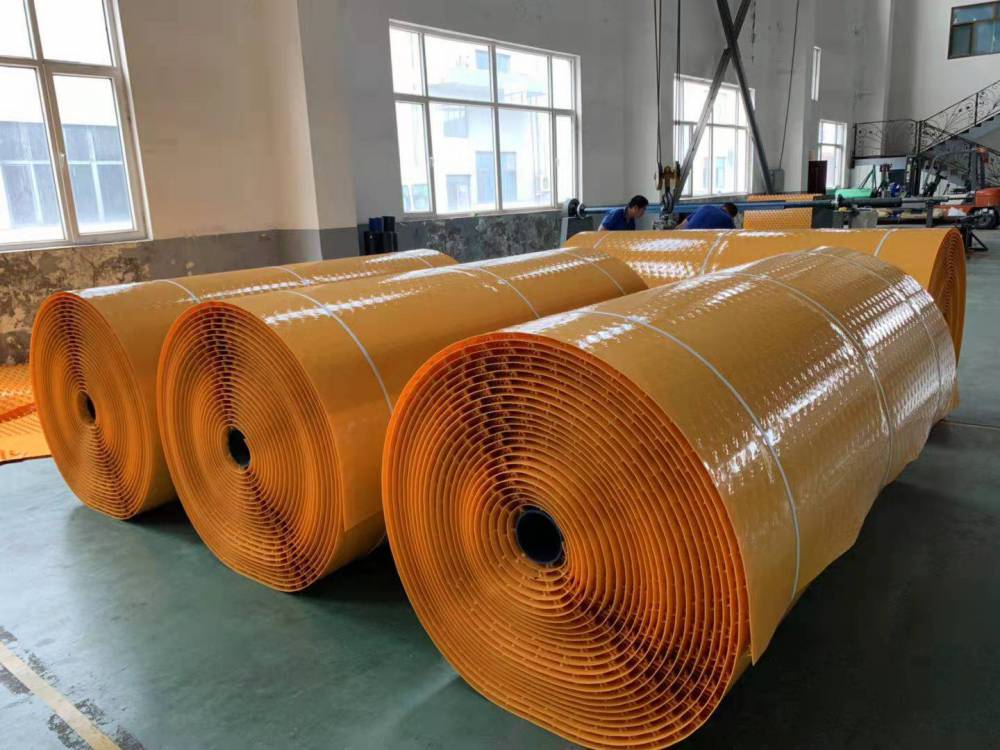

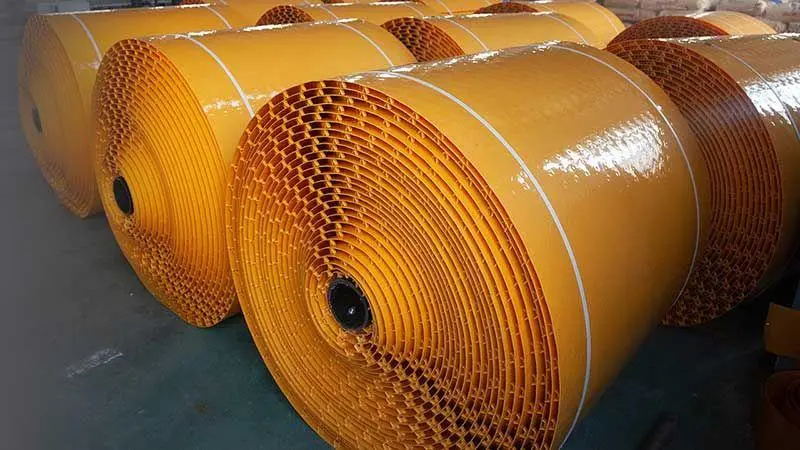

Polyethylene Concrete Protection Liner V-lock Roll Plate
Product Name: Polyethylene Concrete Protection Liner V-lock Roll Plate
Material: HDPE
Color: Black ,yellow ,other color available
Pattern: One side, custom available
Width <=1300mm
Length: 2400mm or custom
Cleat Height 13-19mm

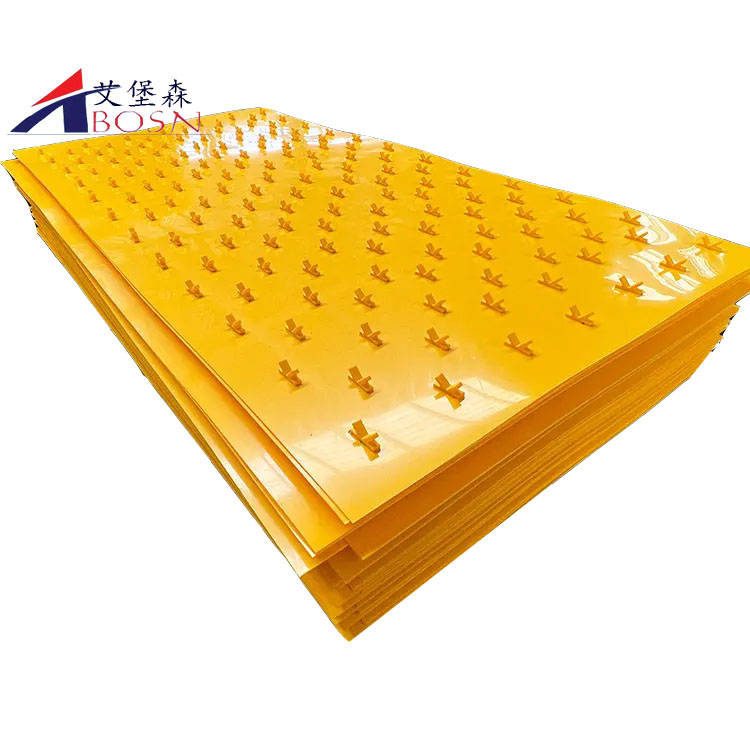

ABOSN’s Polyethylene Concrete Protection Liner V-lock Roll Plate is high density polyethylene (HDPE) geomembrane sheet with studs on one side that lock into applied surfaces. Made with one of the most chemically resistant geosynthetic materials it is used to protect concrete structures from corrosion, erosion and mechanical damage. Providing superior long-term protection, our Concrete Protection Liner can help extend the lifespan of a wide variety of concrete structures including cast-in place sewer tunnels, sump pits, liquid storage tanks and more.
Polyethylene Concrete Protection Liner V-lock Roll Plate Applications

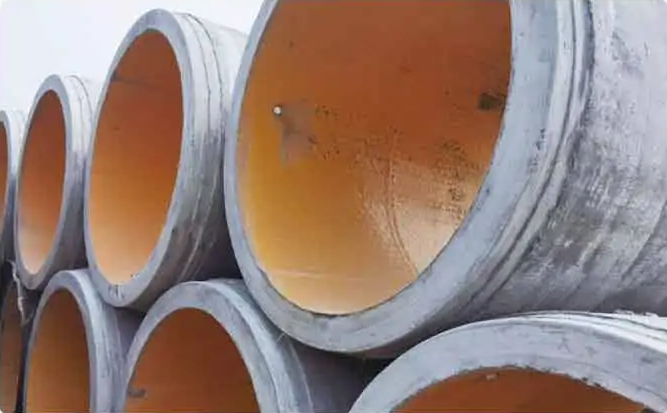

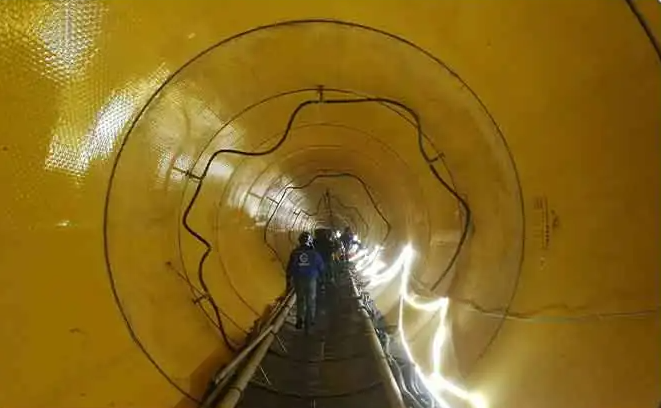

Concrete sewer tunnels
Concrete sump pits
Pre-cast concrete manholes
Concrete processing pits
Concrete storage tanks

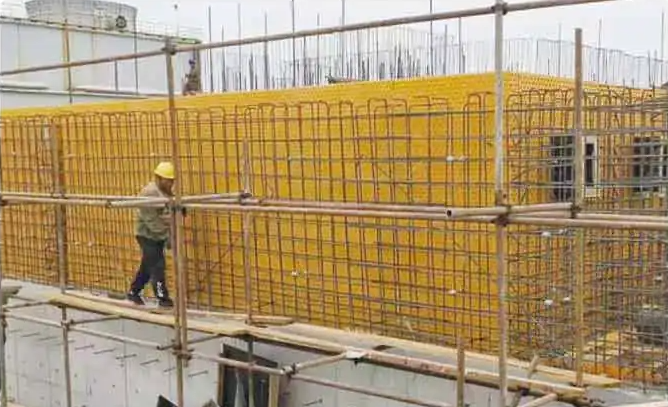

Prefabricated concrete structures
Polyethylene Concrete Protection Liner V-lock Roll Plate Benefits
Material provides the highest degree of chemical resistance.
High pull-out strength.
Minimal lateral movement due to thermal expansion.
Excellent protection against chemical and mechanical damage.
Resistant to UV degradation.
Can be custom prefabricated to a specific dimension or geometric shape.
Can be butt welded, extrusion welded or electrofusion welded.
Polyethylene Concrete Protection Liner V-lock Roll Plate Features
Made of high density polyethylene (HDPE).
Comes in panels measuring 2.44 m wide and up to 70 m long.
Thickness ranges from 2.0 – 5.0 mm.
1200 studs /m².
Studs are approx. 10 mm tall.
Locking studs average pull out strength ~ 70 kg/stud.
Available in customized pre-cast form.
Colour options: black or grey.
Polyethylene Concrete Protection Liner V-lock Roll Plate have been developed to make concrete more resistant to corrosion and prevent leaks. They combine the characteristics of concrete with those of thermoplastic materials, making them ideal for use in buildings that require high-pressure applications.
The Polyethylene Concrete Protection Liner V-lock Roll Plate combines the advantages of thermoplastics (good flexibility, ductility, and corrosion resistance) with the characteristics of concrete (high strength and rigidity), resulting in a material that can not only meet the high requirements of acid-resistance s but also prolong building service life while preventing deterioration. The special anchoring system is suitable for buildings under pressure, and it is widely used for pipe liners with reparable defects such as penetration, abrasion, partial collapse, corrosion, disconnection etc.
For more details, please contact us directly wendy@abosn.com
