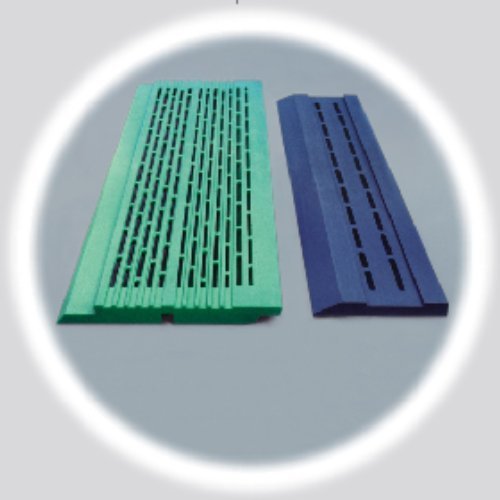

UHMWPE forming board

Leveraging on our enriched industry experience, we are engaged in offering a huge gamut of Forming Board. This Forming Board is designed to serve various industrial applications. Our Forming Board is known for its easy usage techniques and is highly appreciated for its optimum quality. We offer this high grade Forming Board at market competitive prices to attain optimum client satisfaction.

Lead Blade Options
Full width Ceramic with T-mount or dovetail mount
Full Ceramic segmented with dovetail mount

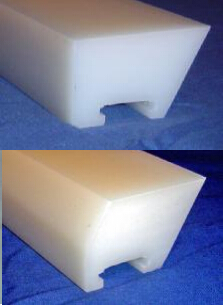

Endura UHMW polyethylene
MP Maximum Pressure design
Follower Blades
Manufactured in any width to adjust the open area of the cover
Can be manufactured to match any style of lead blade

Accessories
Dovetail/T-adapters are available to convert dovetail mount to T-mount on new or existing forming boards
Splash guard can be added to prevent water from hitting the following unit
Machine direction movement can be automated

Features
Custom fitted to each machine
High inertial strength for vibration-free operation
316L stainless steel external construction
Free discharge of doctored water

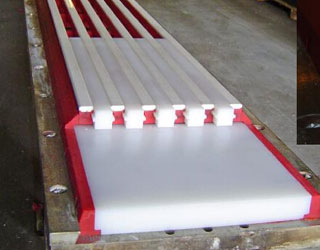

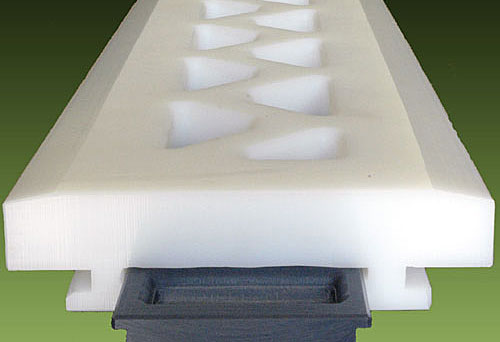

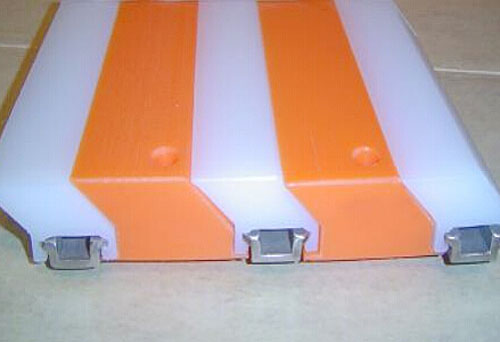

JohnsonFoils T-bars are mounted on full length, precision machined bearer bars for even, “streak-free” dewatering
T-bar mounting provides the flexibility to control the cover open area without removing the fabric
Multiple T-bar positions are spaced to match table pulse frequencies

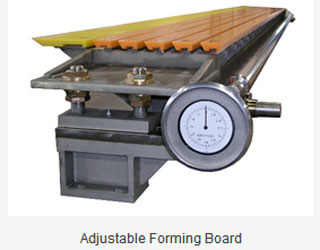

Horizontally and vertically adjustable custom designed mounts provided with unit
Complete adjustability to accept jet impingement

Size
Any size can be customized
Color: White, yellow, blue, orange, green etc, other color can be customized.

Application
The Forming board is specially designed to fit close to the breast roll nip. Its lead blade supports the fabric as the slice delivery lands on the forming fabric. The follower blades are useful papermaking tools for initiating the sheet forming process on the table.
